BLAST FREEZER TEMPERATURE RANGE: -60℃ ~ -30℃
Availability: | |
---|---|
Quantity: | |
ZYC
PRODUCT ADVANTAGE
ZHIYUN blast freezer cold room provides a constant low temperature environment for the quick freezing, which is beneficial for ensuring food quality and reducing processing time.
During the freezing process, the water inside food chrysalises into ice. Long freezing process results in large ice crystals. Large ice crystals damage the cell walls and reduce the quality of food. By quickly freezing the products, the cells within the food are undamaged and preserved, and hence the taste and nutrition of food is locked.
A blast freezer cold room is assembled from polyurethane sandwich panels, doors, low temperature condensing units, evaporators, expansion valves, and auxiliary materials. Room size and equipment are customized by the freezing capacity and freezing time of each cycle.
FREE ON
- Size and Volume, could be designed with your needs
- Design and Quotation, contact us anytime
1.POLYURETHANE PANEL AND DOOR
- Polyurethane PANEL: 150mm/200mm PUR Panel with Cam-Lock (Density: 40±2kg/m³)
- Wall/Roof Panel Surface Plate: Color Steel / Stainless Steel
- Floor Panel Surface Plate: Galvanized Steel / Anti-slip Aluminum / Anti-slip Stainless Steel
- Polyurethane DOOR: Hinged Door, Sliding Door
2. CONDENSING UNIT

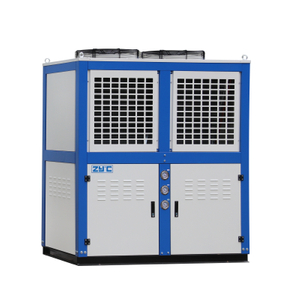

Air Cooled Condensing Unit
Water Cooled Condensing Unit
Evaporative Cooled Condensing Unit
Rapid Refrigeration
- Equiped with the large capacity low temperature refrigeration compressor, robust and stable, long service life
- Various in Condensing Methods: Air Cooled, Water Cooled, Evaporative Cooled
- Exquisite Assembly: selected refrigeration parts to optimize refrigeration performance and ensure necessary protections
- Pressure testing and leak detection before leaving the factory
3. EVAPORATOR
Ceiling Mounted Air Cooler
Floor Standing Evaporator
Aluminum Tube Shelf
- High efficient cooling, less temperature fluctuations
- Select different types based on the size of the cold storage and the freezing method of the goods: Ceiling Mounted Air Cooler, Floor Standing Air Cooler, Aluminum Tube Shelf
- Reduce dry consumption of products, Fewer temperature fluctuations, Maintain food quality
4. REFRIGERATION CONTROL PANEL
- Standard Function: Refrigeration control, Defrost control, Compressor overload and phase loss protection, Temperature display, Current display, Fault alarm
- Monitoring and Remoting if accessing WiFi
- Siemens PLC for complex control requirements
- Including the control of compressor, air cooler and auxiliary equipment
- High Quality Electronic Accessories: CHNT, Schneider, Siemens
5. THERMAL EXPANSIONAL VALVE
- Excellent control of the amount of refrigerant injected into the evaporator
- Integrated valve or Interchangeable orifices valve, Internal or external equalizer
- Fast and easy to install
5. CONNECTION
Copper Pipe and Copper Fittings
6. SUPPORTING MATERIALS
- Water Proof LED Light
- PVC Curtain or Air Curtain
- Insulation Pipe, Tie
- Welding Rod
- Evaporator Support, Evaporator Drainage Heater
- Ceiling Panel Support, Foaming Agent, Sealant
TECHNICAL PARAMETERS
CONFIGURATION
STANDARD | 1. Polyurethane Panel, Door, and panel support accessories 2. Condensing Unit with compressor and condenser 3. Evaporator: Aluminum Tube, Blow Type Air Cooler 4. Refrigeration Control Panel 5. Thermal Expansional Valve 6. Refrigeration Oil, Curtain, Light, Connection Materials, Welding Materials, Support Materials |
OPTIONAL | Select according to user needs |
PRODUCT USES
Application Industry: Food, Medicine, Chemicals
Application Scenario: Quick Freezing
